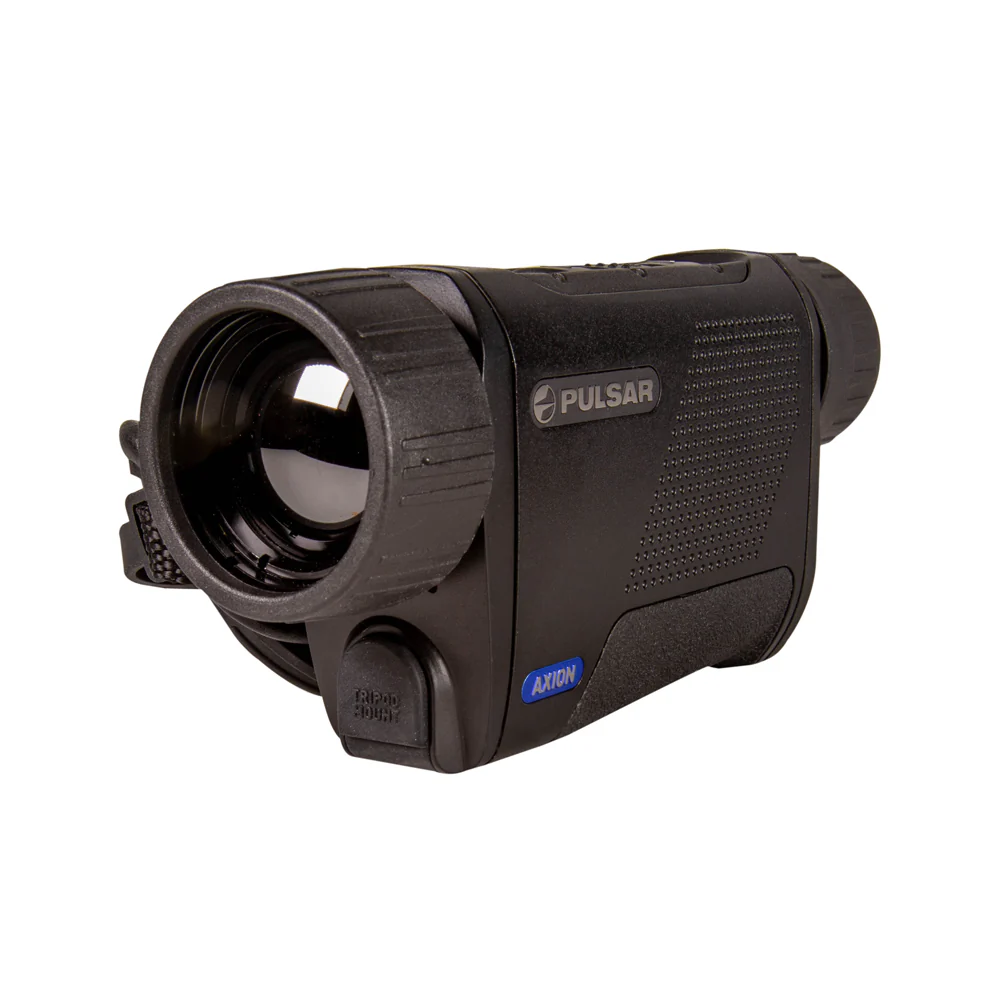

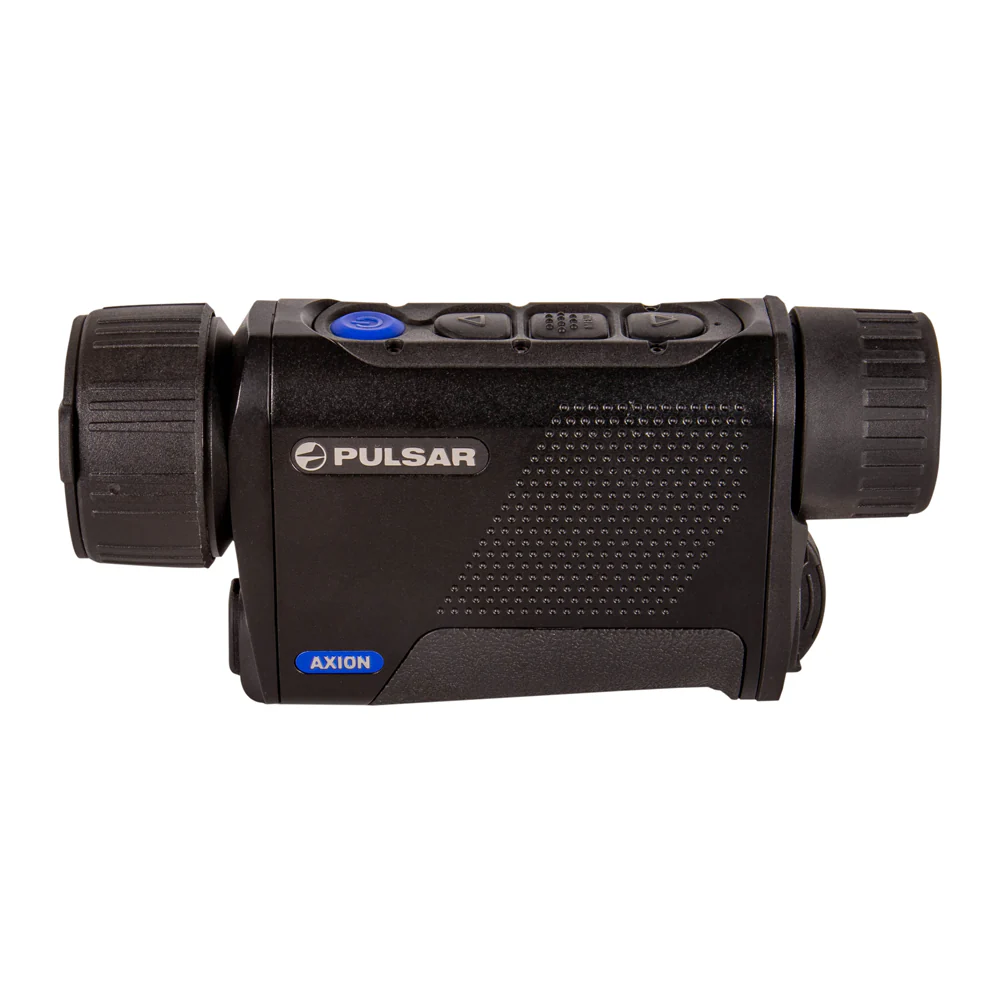

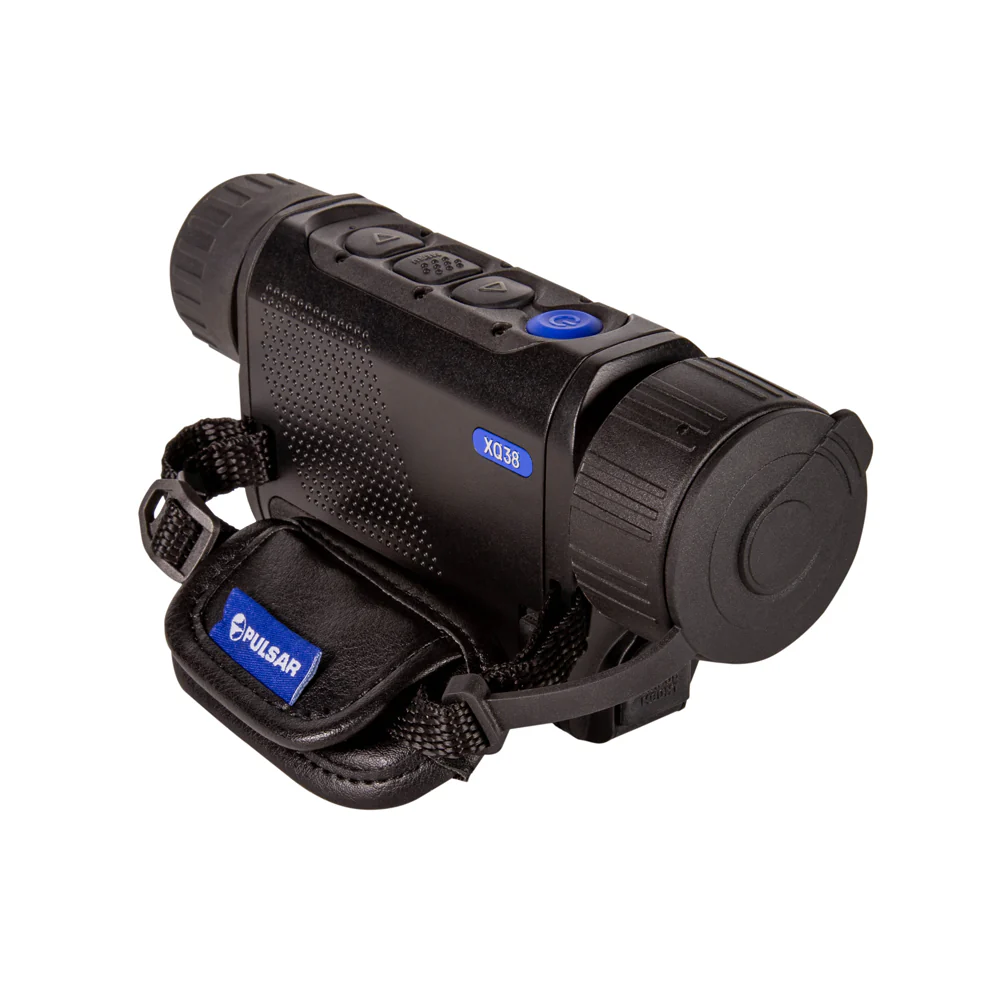

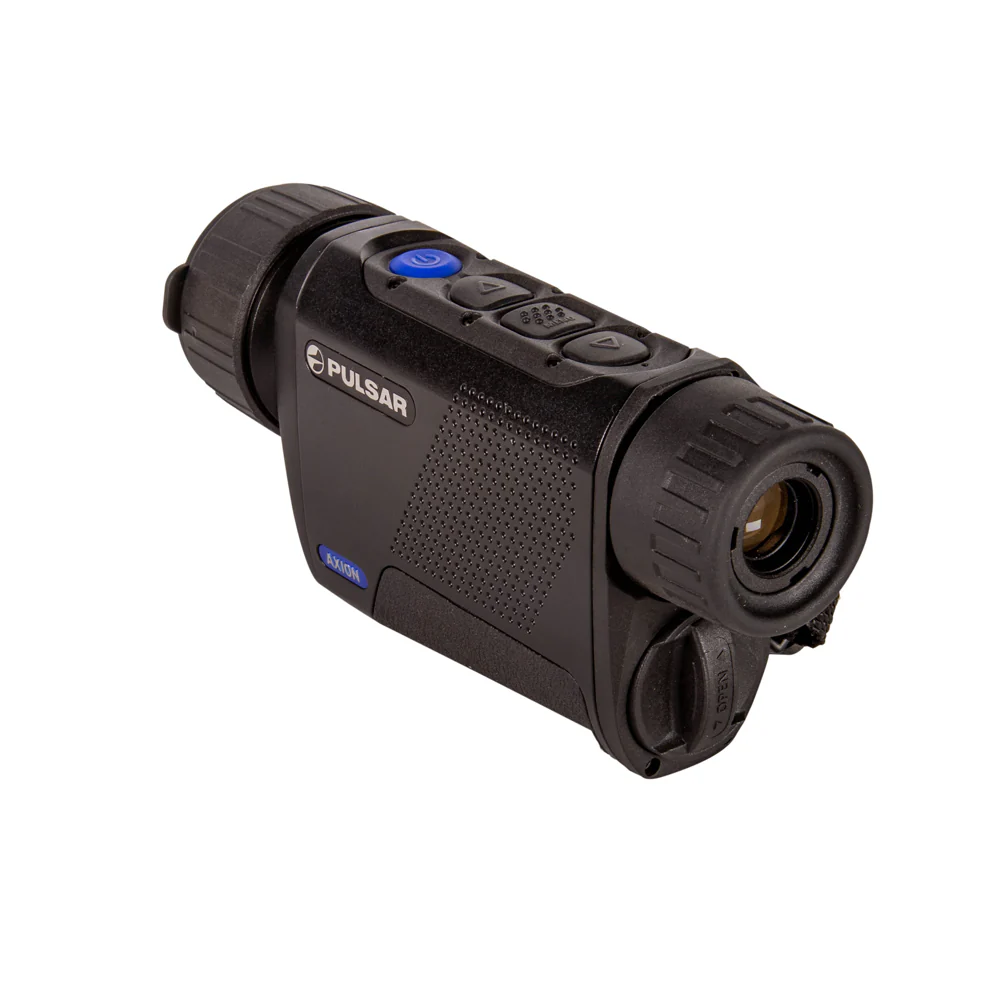

Axion XQ38 Thermal Monocular

Description

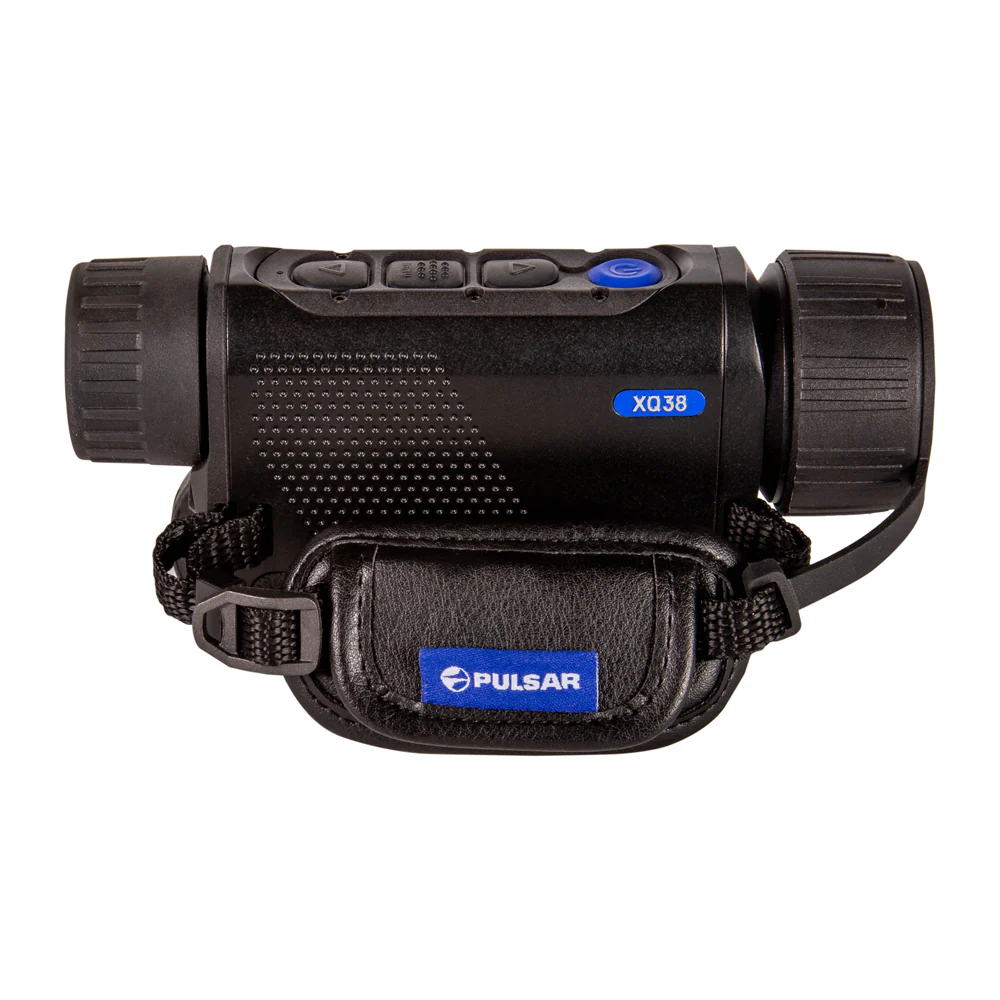

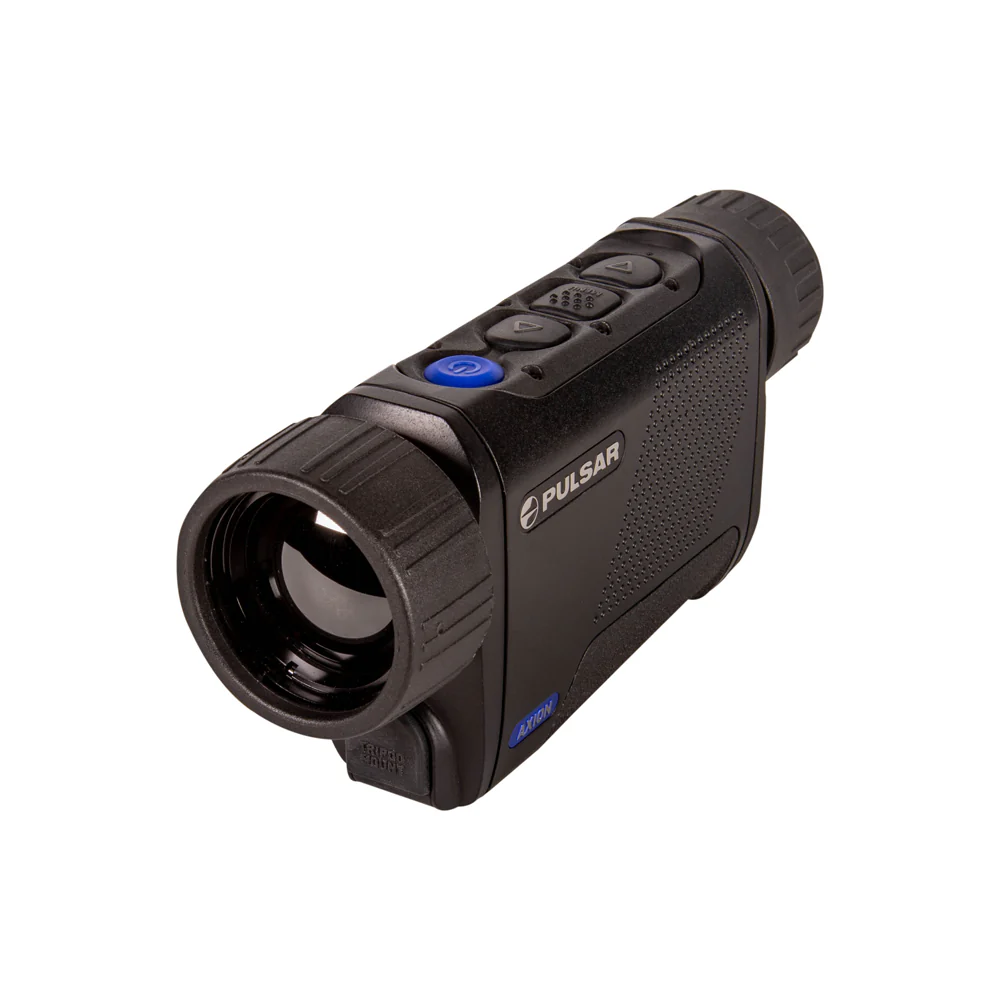

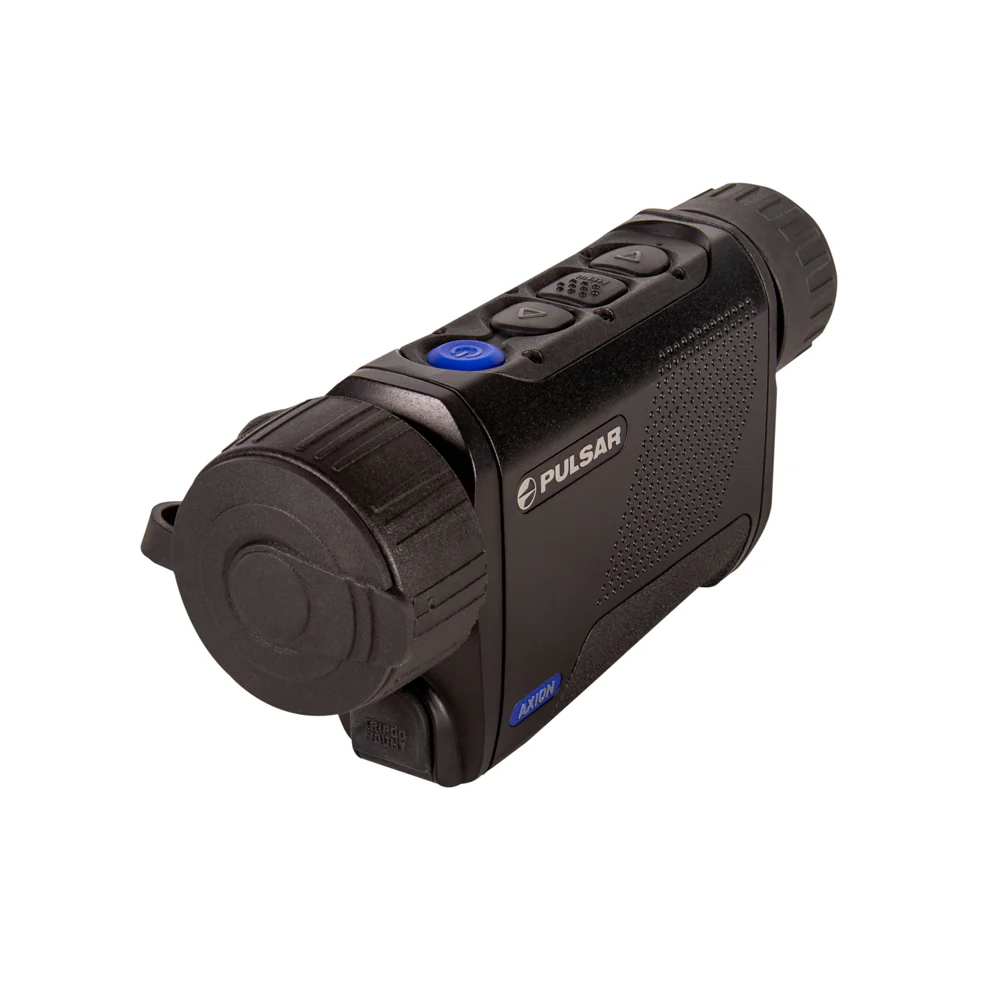

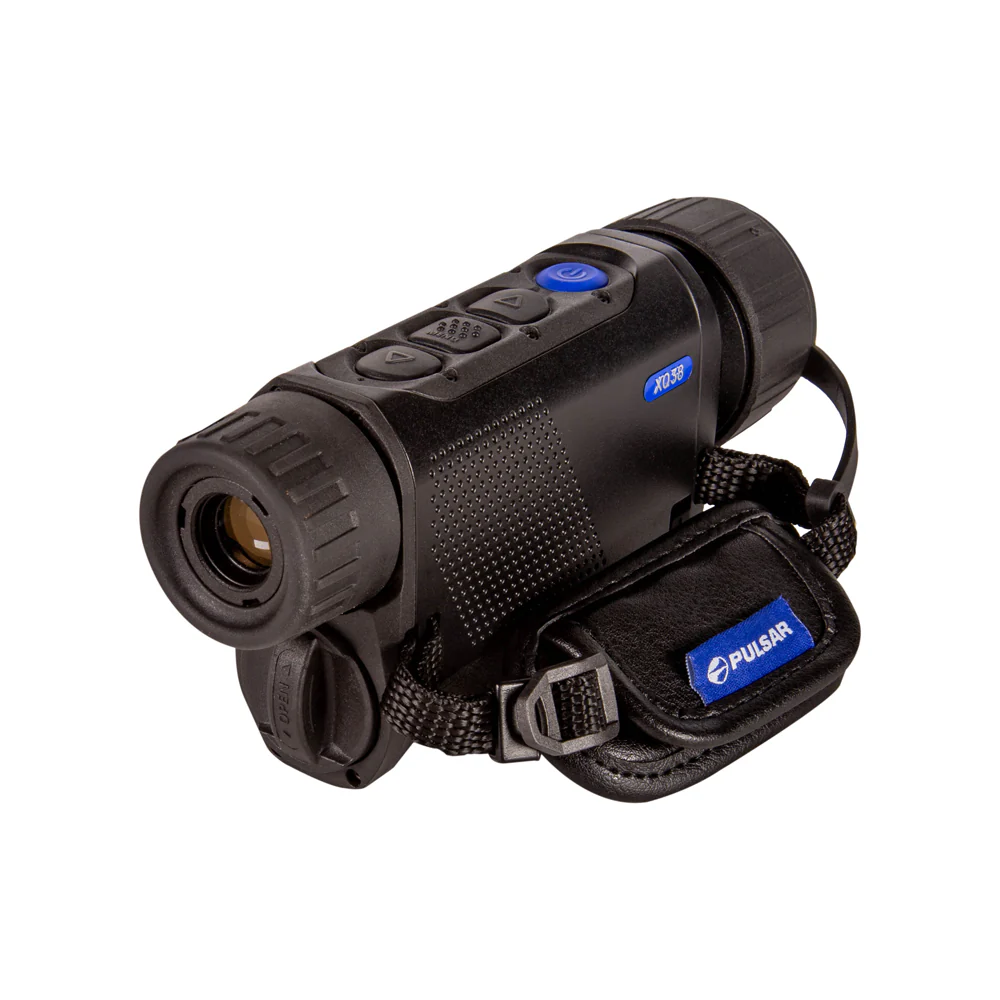

The new Axion XQ series has rugged, reliable all-metal, yet lightweight housing. Even though the device is slightly larger than Axion XM series, it perfectly fits into user's hand. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Alongside the new sensor, Pulsar Axion XQ boasts a proprietary Image Detail Boost picture enhancement technology, which increases clarity and detailedness of image, and together with HD AMOLED display ensures better identification of the objects. 38mm lens combined with 384Ñ…288 @ 17µm thermal sensor offers not only a long detection range of up to 1350 m., but also a wide field of view of 9.8°. New Pulsar IPS5 quick-change rechargeable battery provides up to 6 hours of non-stop operation.

Included in Package

• APS 5 Battery Pack
• APS 5 Battery Charger
• USB cable
• 220-USB plug
• Lens cleaning cloth
• Carrying case

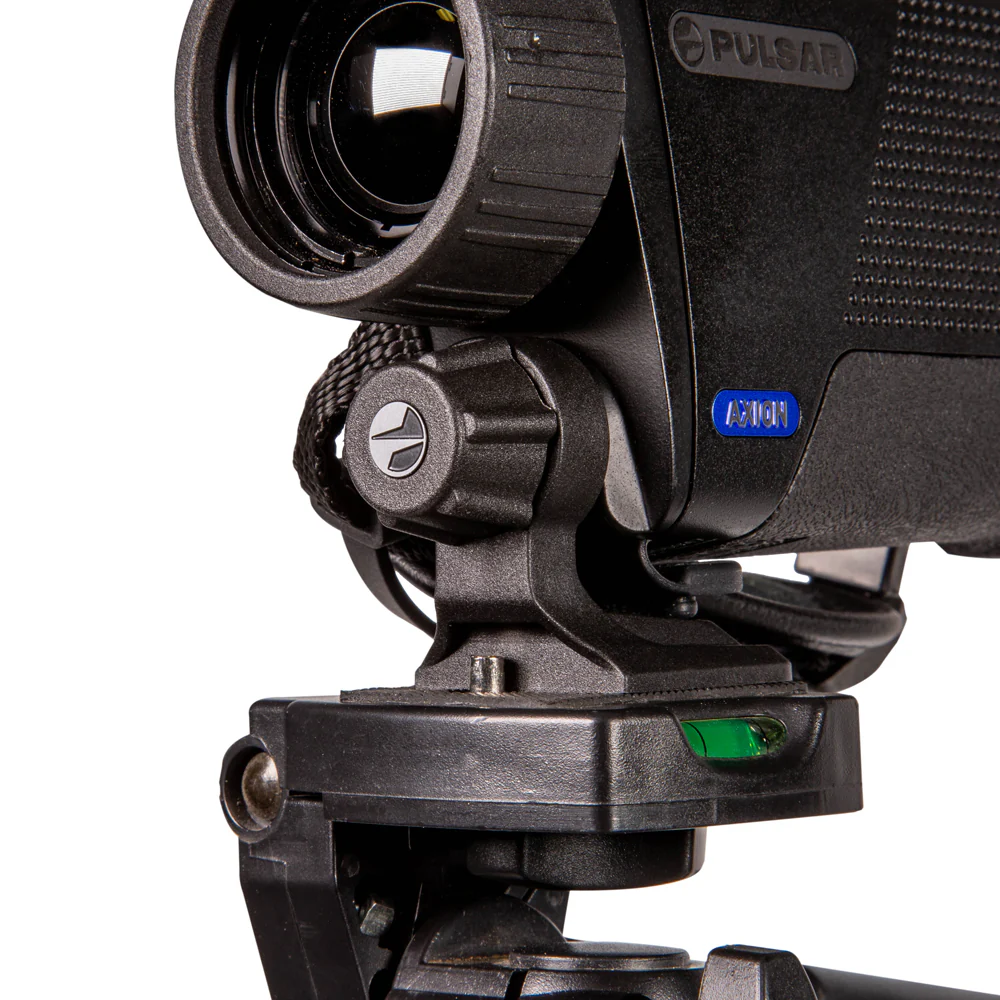

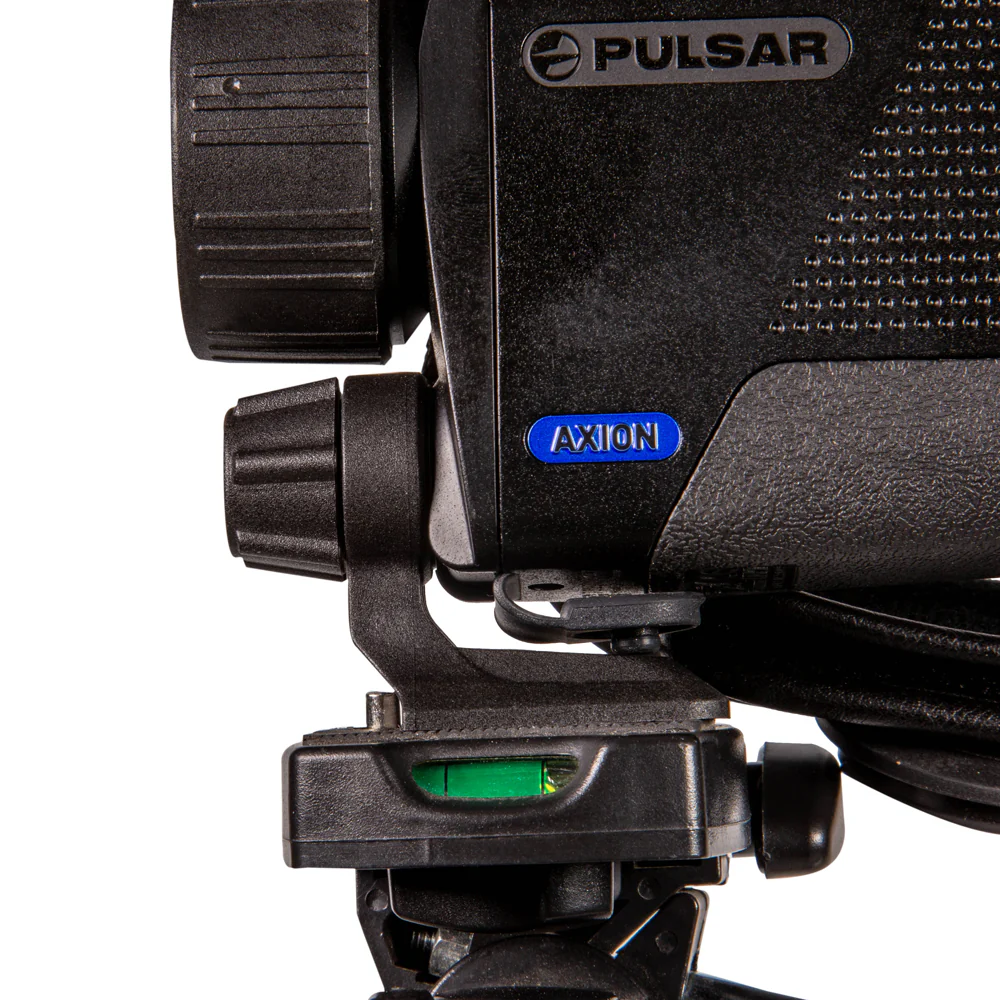

• Tripod mount adapter

Battery Used

• Type: APS 5 (Li-Ion) Battery Pack
• Quantity: 1

Product Downloads

• Product Manual
• Quick Start Guide
• Product Specifications

Features

• Sensor resolution 384Ñ…288 @ 17µm
• High sensitivity sensor (NETD < 40 mK)
• 6 Hours of non-stop operation
• Detection range up to 1350 m
• Full color HD AMOLED display
• Highly durable magnesium housing
• Variable digital zoom 3.5-14x
• Instant start-up
• Picture-in-picture mode
• IPX7 waterproof-rated

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Frame Rate, Hz	50
Microbolometer Resolution, pixels	384x288
Sensor response	LWIR
Pixel Pitch, µm	17
Display Type	AMOLED
Display Resolution, pix.	1024x768
Built-in Video Recorder Availability	Yes
Operating modes	Rocks, Forest, Identification
Integrated Wi-Fi	Yes
Defective Pixel Repair Option	Yes
Stadiametric Rangefinder	Yes
Multiple color palettes	Yes
Stream Vision support	Yes
Magnification	3.5-14 x
Digital Zoom	4 x
Lens diameter, mm	32
Lens Focus, mm	38
Relative aperture, D/f'	1.2
Field of View, degrees	9.8
Field of view, m@100m	17.2
Field of view, ft@100yd	56.4
Minimum focusing distance, ft/m	10 / 3 ft / m
Eye Relief	15 mm
Exit Pupil, mm	3.5
Diopter Adjustment	+4/-5
Focusing Type of Distance	Objective
Range of Detection	1475 / 1350 yd / m
Power Supply	4.2 - 3.0 V
Battery Type	APS 5 (Li-Ion)
Battery life, (with video out off), hours	5
External Power Supply	5V MicroUSB
Lens Material	Germanium
Body Material	Magnesium alloy
Tripod Mount, inch	1/4
Operating Temperature	-13 to 104 / -25 to +40 F / C
Level of Protection (acc. to IEC 60529)	IPX7
Calibration	Manual, Automatic, Semi-automatic
Length	6.6 / 167 in / mm
Width	1.9 / 49 in / mm
Height	2.9 / 73 in / mm
Weight, oz	12.3 oz
